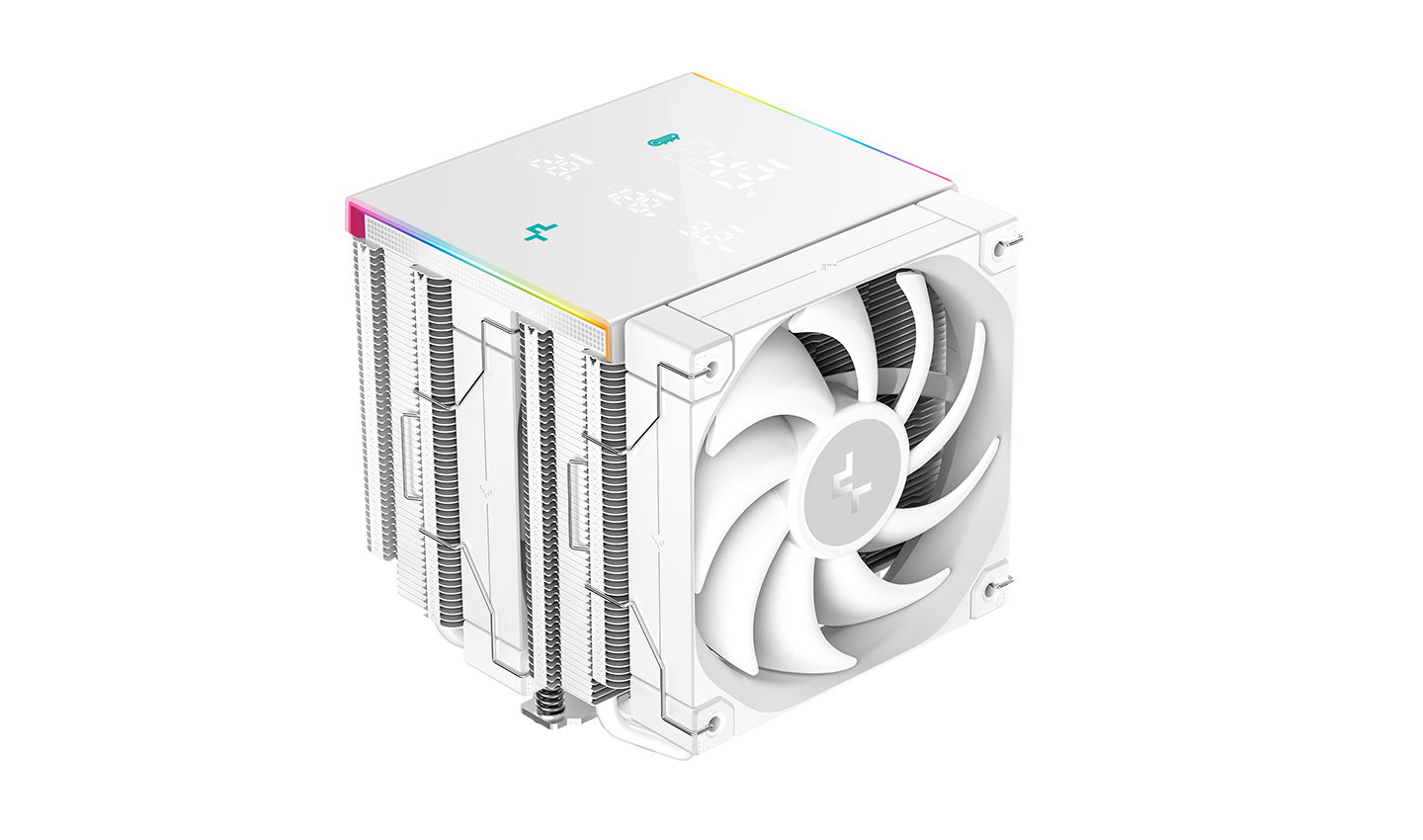

AK620 DIGITAL PRO WH

CHŁODZENIA CYFROWE GO PRO

ENHANCED CPU STATUS SCREEN

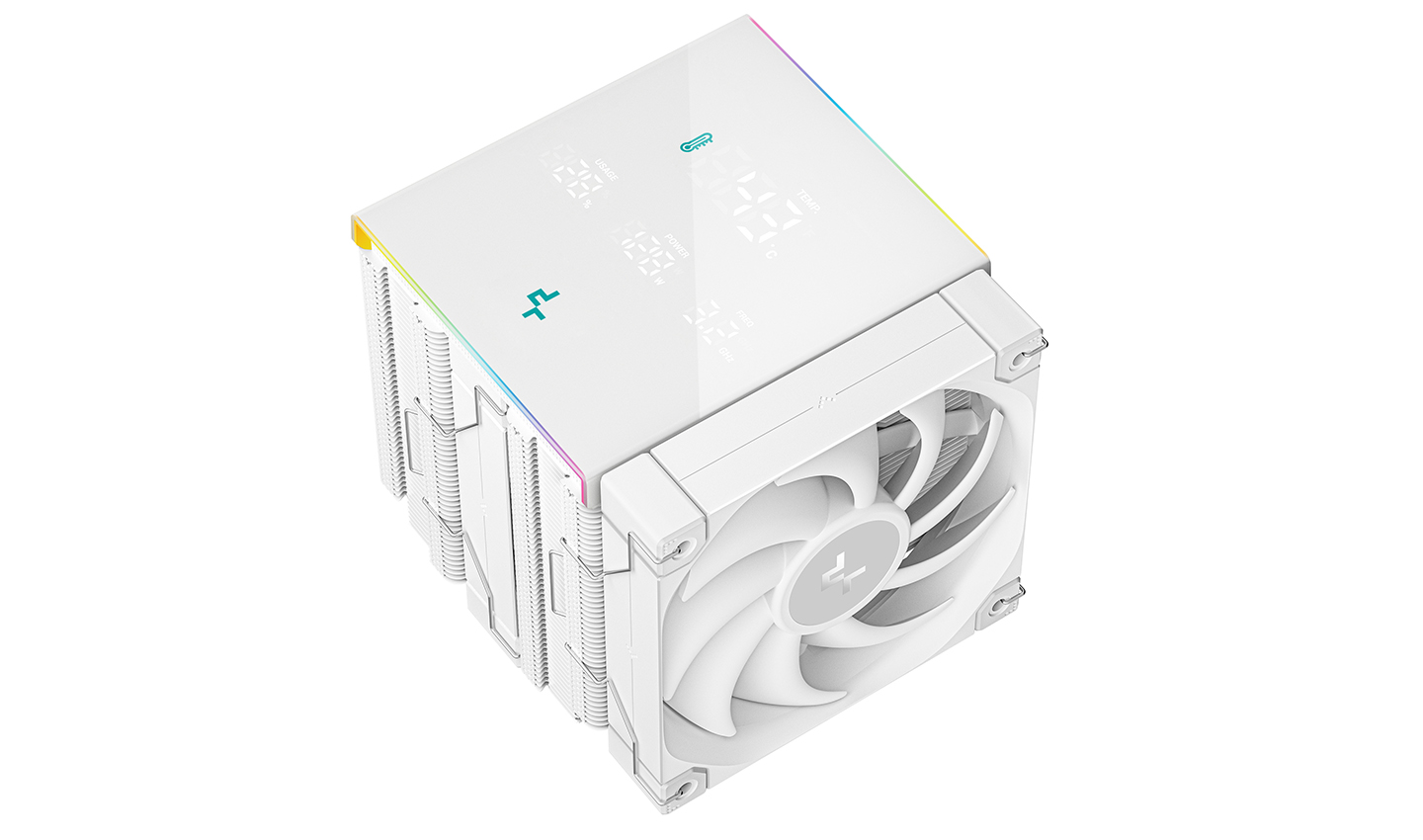

The sleek and shiny screen of the AK620 DIGITAL PRO WH has been enhanced to show more than just the temperature; usage, wattage, and frequency have been added and are displayed at the same time. The display is controlled via DeepCool software and only requires an open USB 2.0 header.

℃

℉

*Due to variances in hardware configurations, polling periods, and system settings, the displayed information may experience minor delays.
*CPU temperature based on Intel: CPU Package / AMD: CPU Tdie

VISUAL TEMPERATURE ALERTS

The temperature warning alert system has also been upgraded to have a color-coded visual indicator: under 80 °C, the indicator will stay green; between 80 and 90°C, it will be a bright orange; when things get warm above 90 °C, it will go red, and you will start to see flashes.

IMPROVED FOR EASE

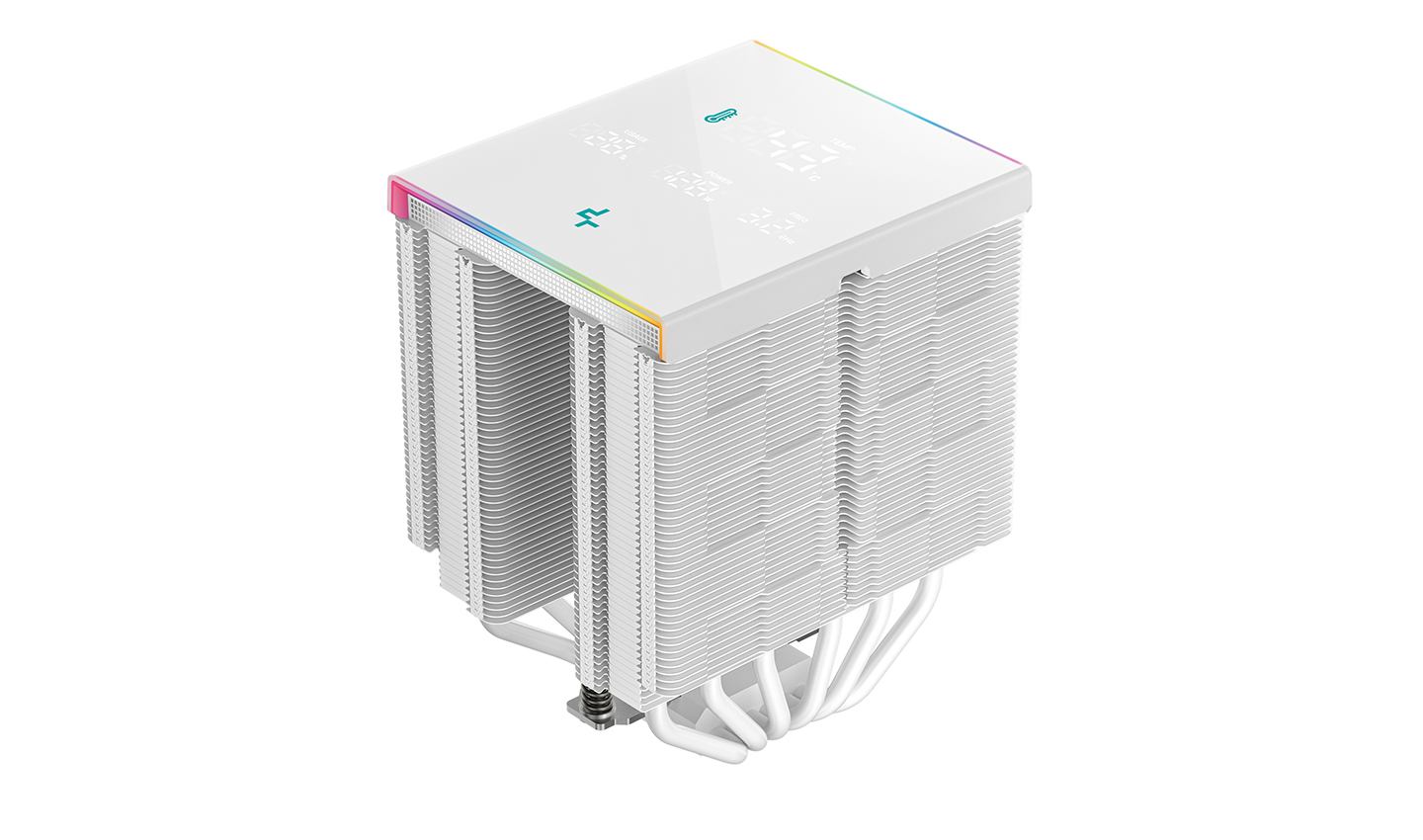

The magnetic top panel of the AK620 DIGITAL PRO WH has also been upgraded with a pogo pin and pad contact point, greatly simplifying the installation of DeepCool's best-selling twin tower cooling beast.

OPTIMIZED COOLING

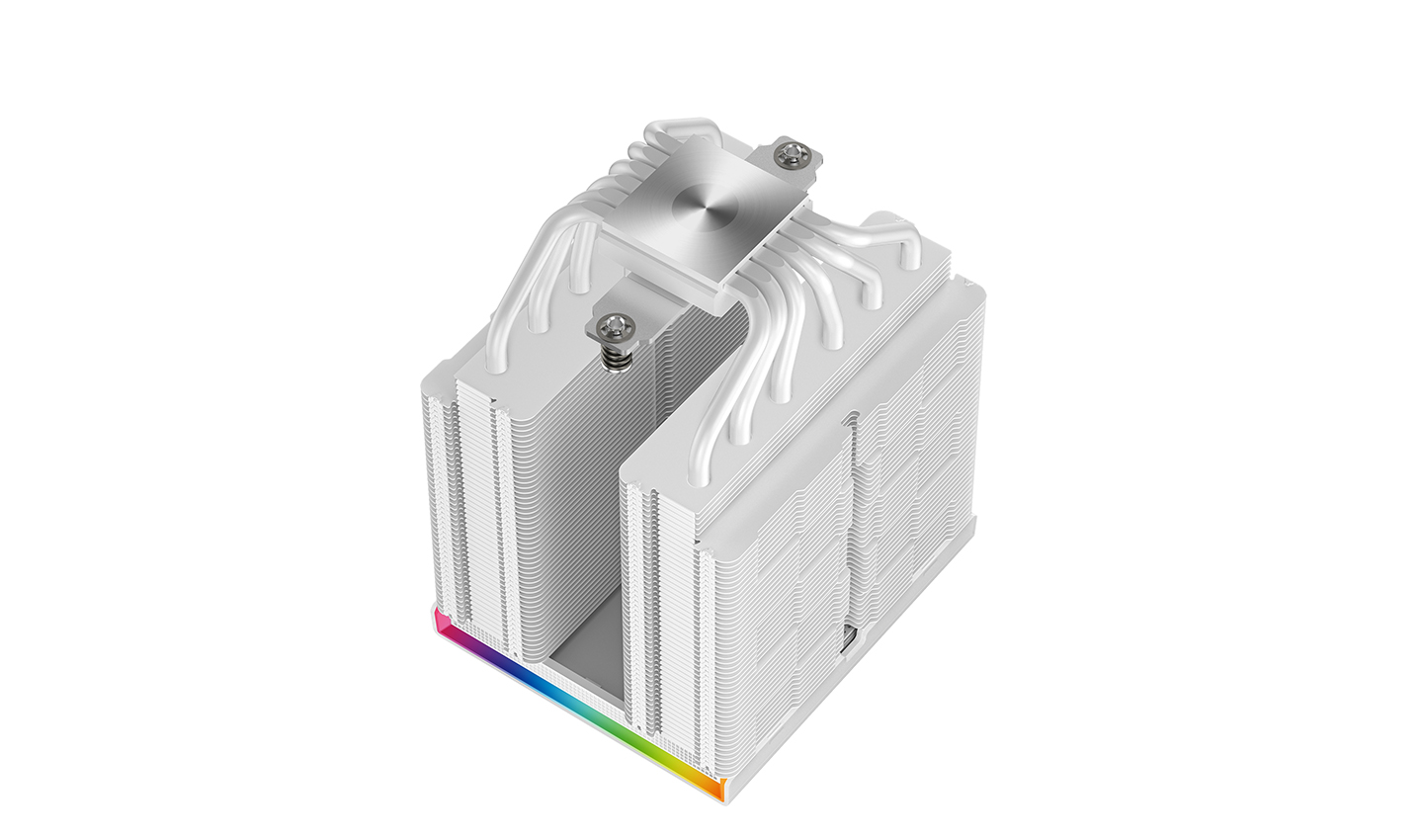

An upgrade to DeepCool's newest Core Touch Technology 2.0 dramatically improves cooling capacity. The heatpipes have been optimized and laid out to promote the best possible thermal transfer through the nickel-plated coldplate from the CPU IHS. As a result, CTT 2.0 provides a bump in cooling performance.

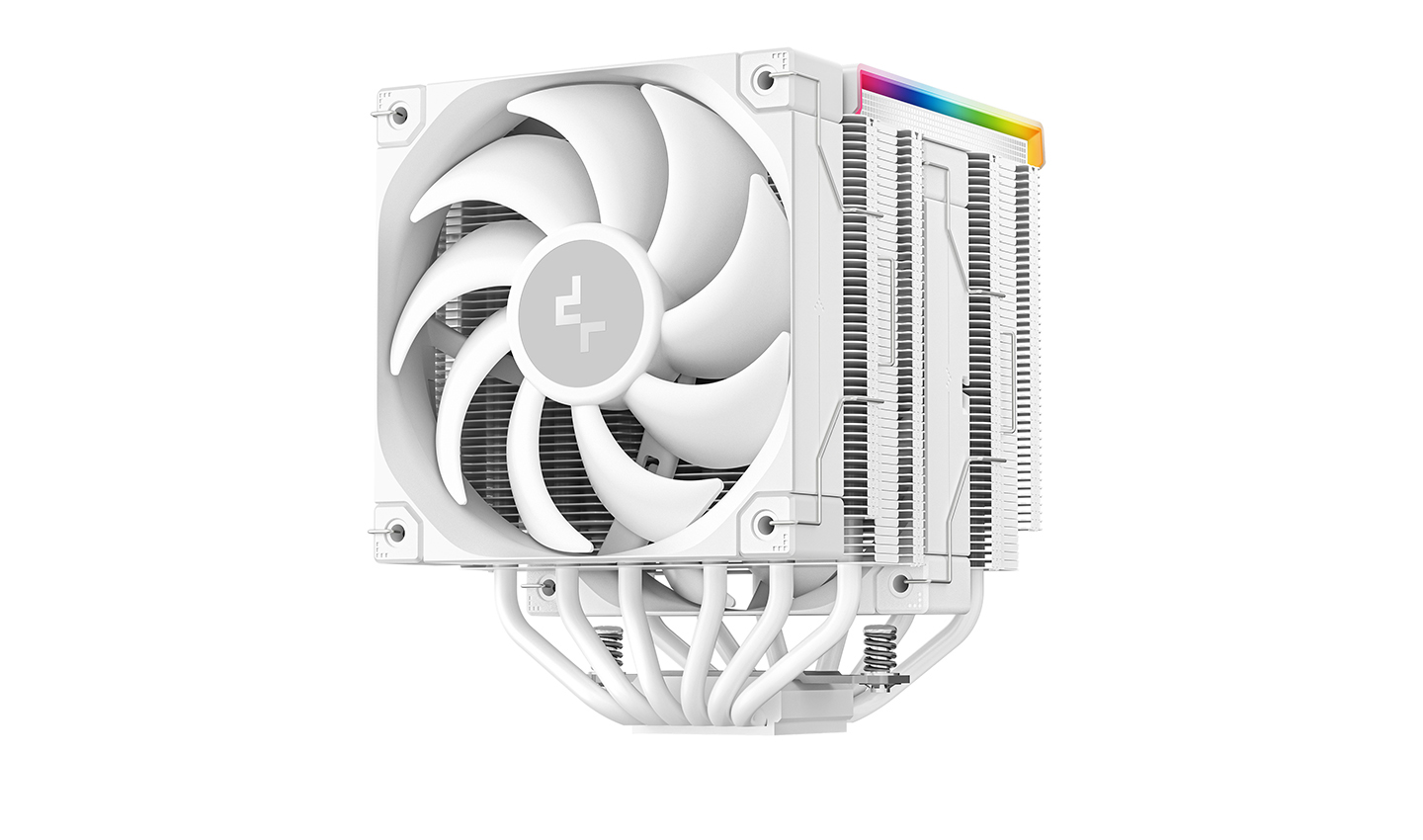

PROVEN AK WH DESIGN

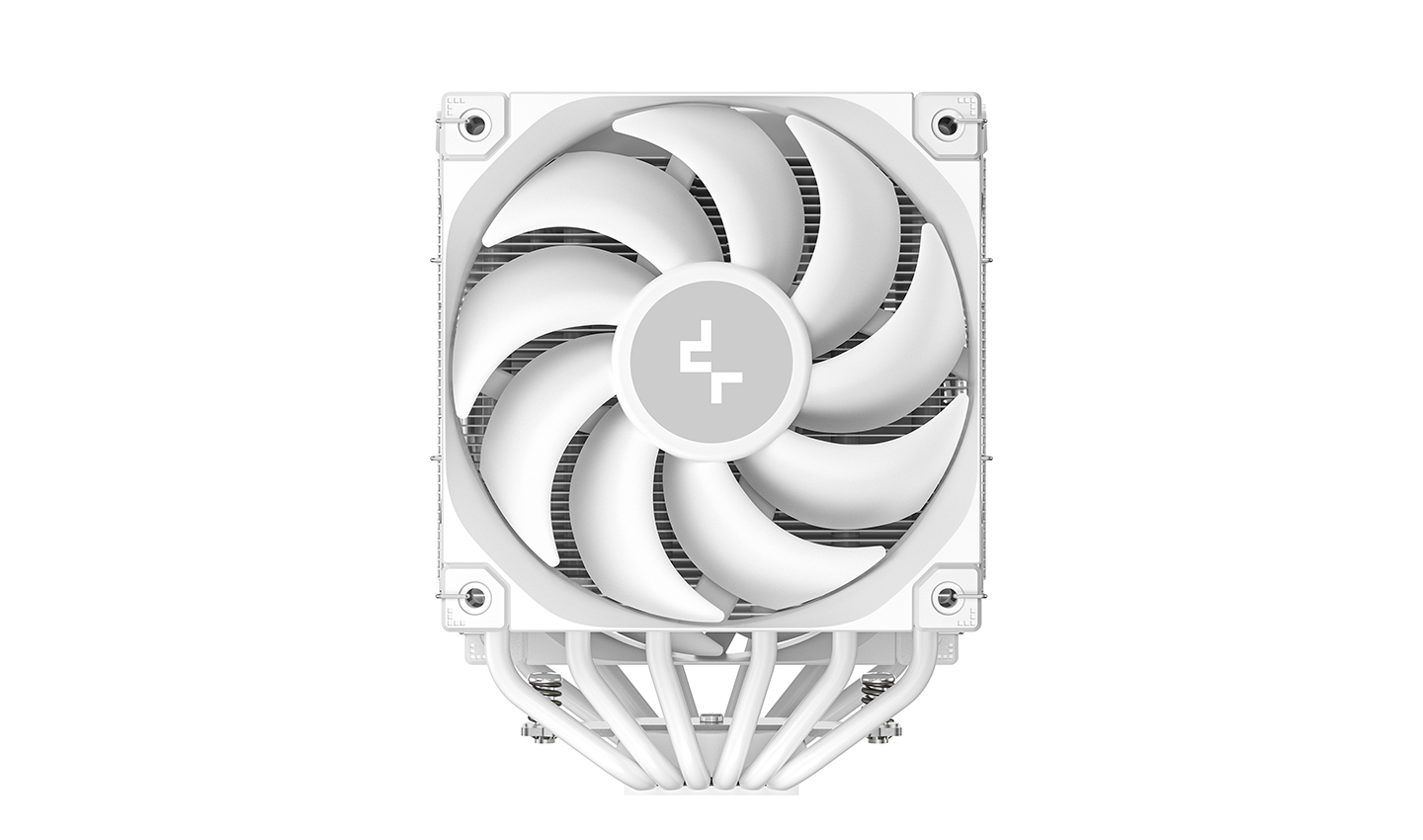

An all-white variation of the dominant AK620 high-performance CPU cooler. The same premium-quality materials, featuring six advanced copper heat pipes, a dense matrix pattern dual-tower heat sink, and two silent FDB fans, produce a powerful winning formula for high-performance cooling in a frost-white design.

KEEP YOUR COOL

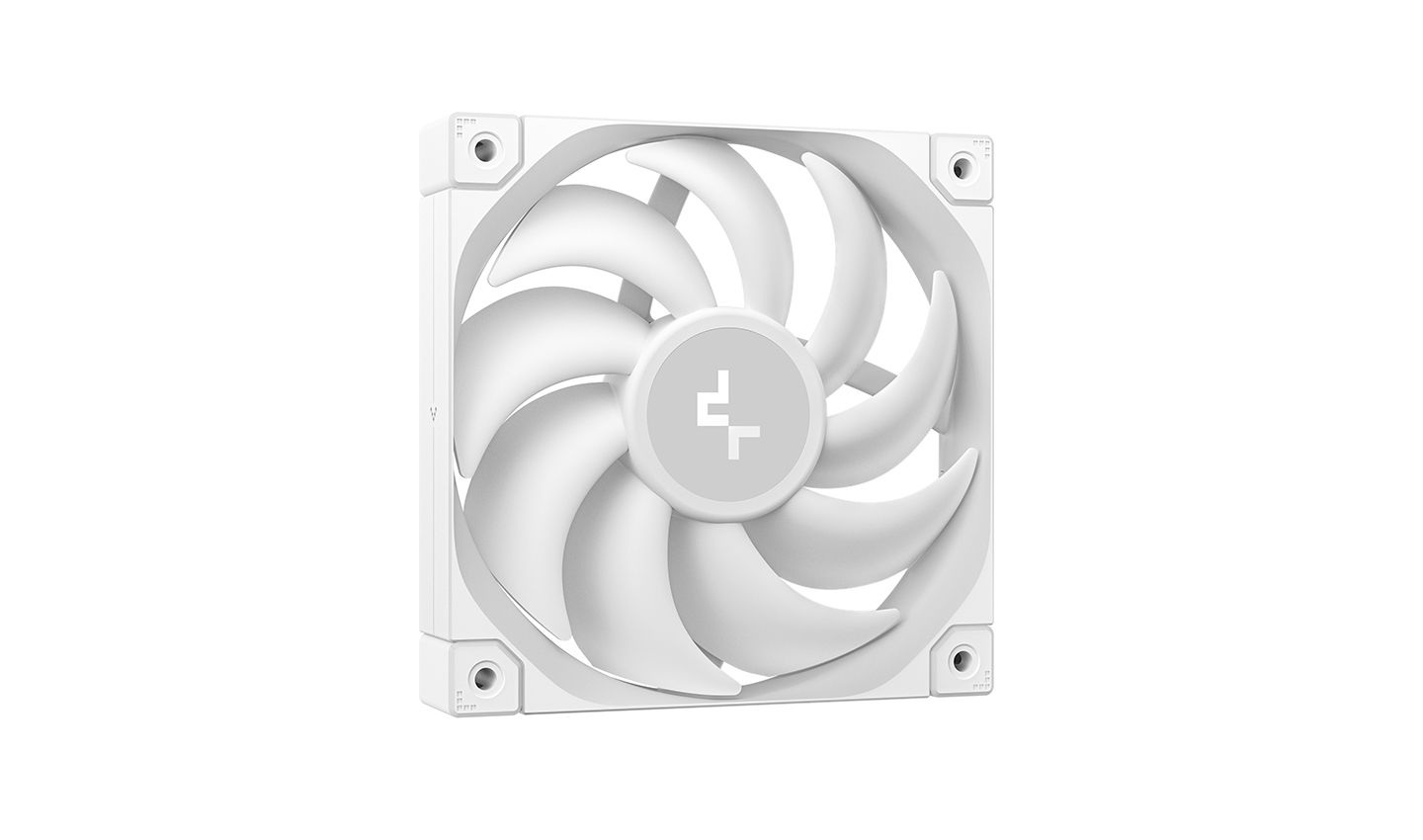

Upgraded to the newly designed FT12 SE fans with a true fluid dynamic bearing, the AK PRO models will get a PWM fan with a blade profile that has been optimized for the perfect balance of airflow and static pressure while minimizing the fan acoustics.

500-1750 RPM±10%

Fan Speed

60.89 CFM

Air Volume

2.91 mmAq

Static Pressure

≤25 dB(A)

Fan Noise

A HINT OF ARGB LIGHTING

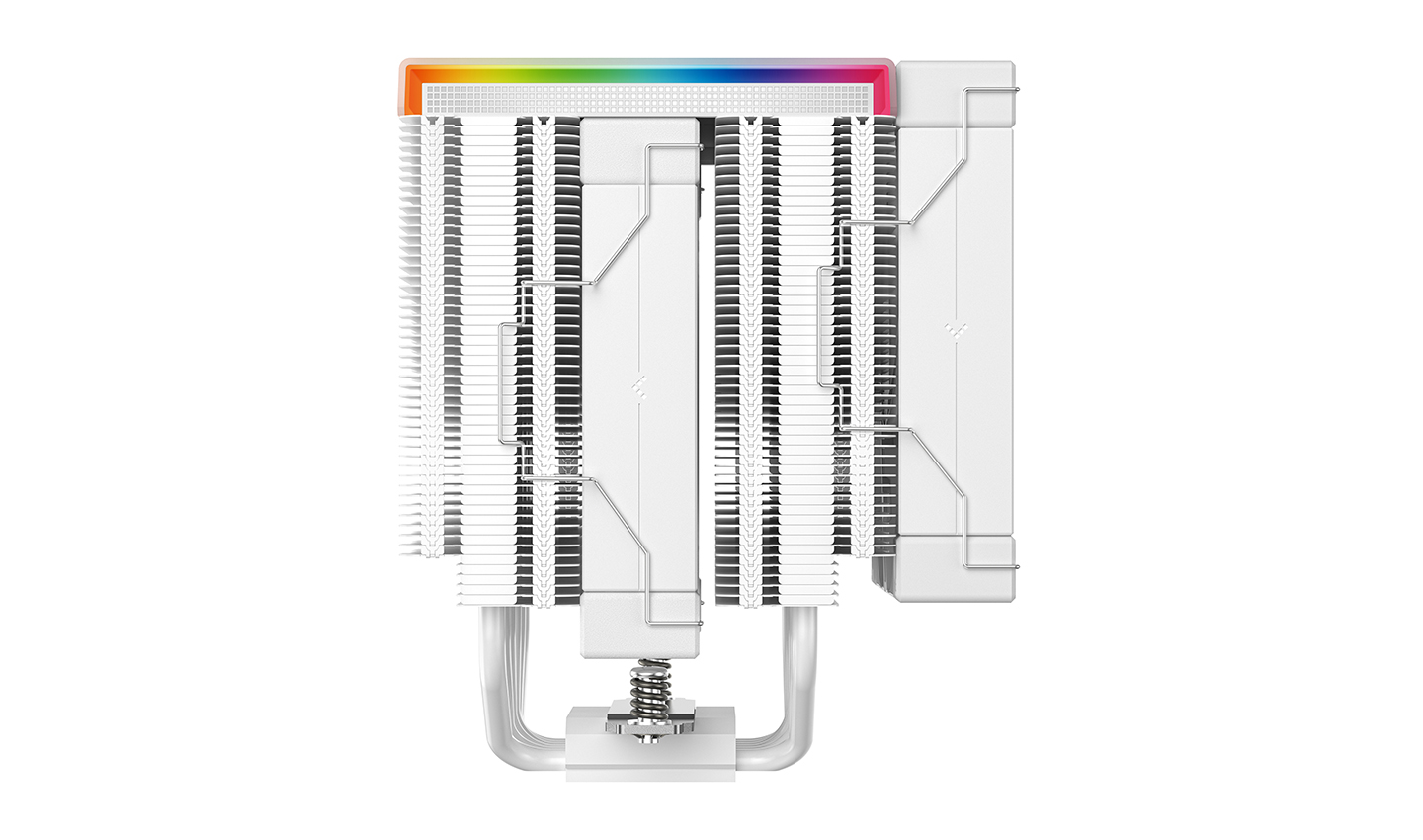

Subtle ARGB strips at two of the top panel edges add an understated glow that can be easily synced to compatible ARGB headers of your motherboard.

SIMPLIFIED MOUNTING

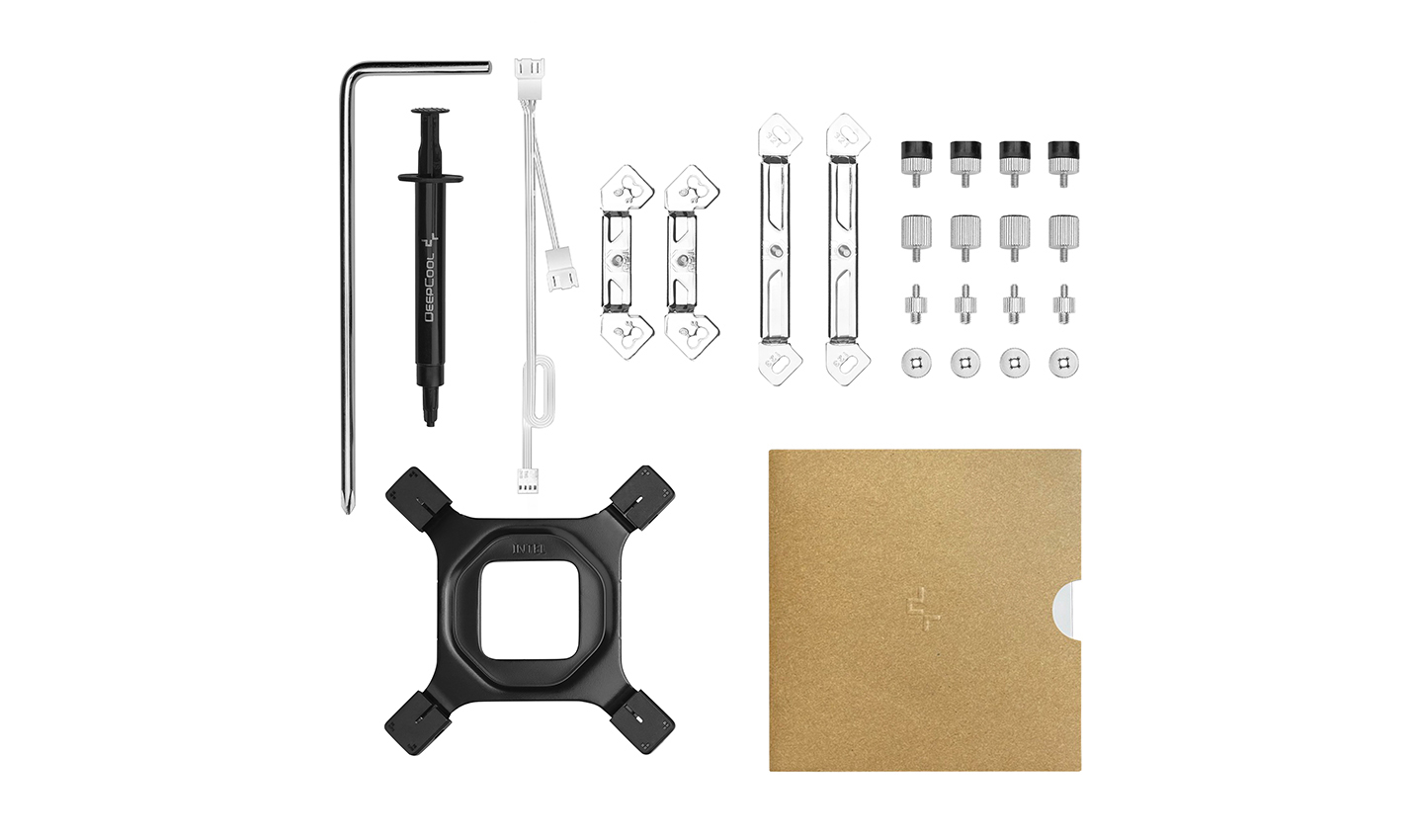

The durable mounting hardware provides a simple installation process that ensures proper contact and equal pressure on mainstream Intel and AMD platforms.

Zgodne ze standardem

Intel

LGA2066/2011-v3/2011/1851/1700/1200/1151/1150/1155

AMD

AM5/AM4

Specyfikacja Techniczna

Wymiary produktu	129×138×163 mm(L×W×H)
Wymiary radiatora	127×110×154 mm(L×W×H)
Waga netto	1491 g
Heatpipe	Ø6 mm×6 pcs
Wymiary wentylatora	120×120×25 mm(L×W×H)
Prędkość wentylatora	500~1750 RPM±10%
Przepływ powietrza	60.89 CFM
Ciśnienie powietrza w wentylatorze	2.91 mmAq
Poziom hałasu wentylatora	≤25 dB(A)
Złącze wentylatora	4-pin PWM
Typ łożyska	Dynamiczne łożysko olejowe
Napięcie znamionowe wentylatora	12 VDC
Prąd znamionowy wentylatora	0.25 A
Pobór mocy przez wentylator	3 W
Typ diody LED	Adresowalne diody LED RGB
Złącze LED	3-pin(+5V-D-G) and 9-pin USB 2.0
Napięcie znamionowe LED	5 VDC
Pobór mocy LED	5.55 W
EAN	6933412728825
P/N	R-AK620-WHAPMN-G
